Maximum flexibility in mobile use

Portable proportioners for fire brigades

The mobile proportioners offer maximum flexibility in mobile use and guarantee precise foam agent proportioning across the entire operating range. It takes only a few turns to switch between the proportioning rates during operation.

The mobile proportioners are also suitable for producing wetting agent. Due to the reduced surface tension, the wetting agent deeply soaks into the substance on fire, notably increasing the extinguishing success, compared with water or foam, and depending on the type of application.

  • Appropriate for all jet nozzle types
  • Ideally suited for intermittent nozzle operation
  • Suitable for foam and wetting agent

Media & Information

your advantages

Flexible use

Easy switching between
proportioning rates

Rugged and built-to-last

Reliable use in hazardous areas thanks to premium materials.

For all common
foam agent types

Also suitable for producing
wetting agent.

  • Extremely compact

The mobile proportioners are extremely compact and easy to carry by two persons.

  • For intermittent nozzle operation

The mobile proportioners guarantee a constant proportioning rate also at varying water flow rates.

  • For all jet nozzle types

The appropriate for all jet nozzle types – independently of their height difference – e.g., when used on aerial ladders.

  • Switching between the proportioning rates during operation

As the proportioning rate can be changed during operation, optimum adaptation of the water flow rate to varying firefighting scenarios is possible.

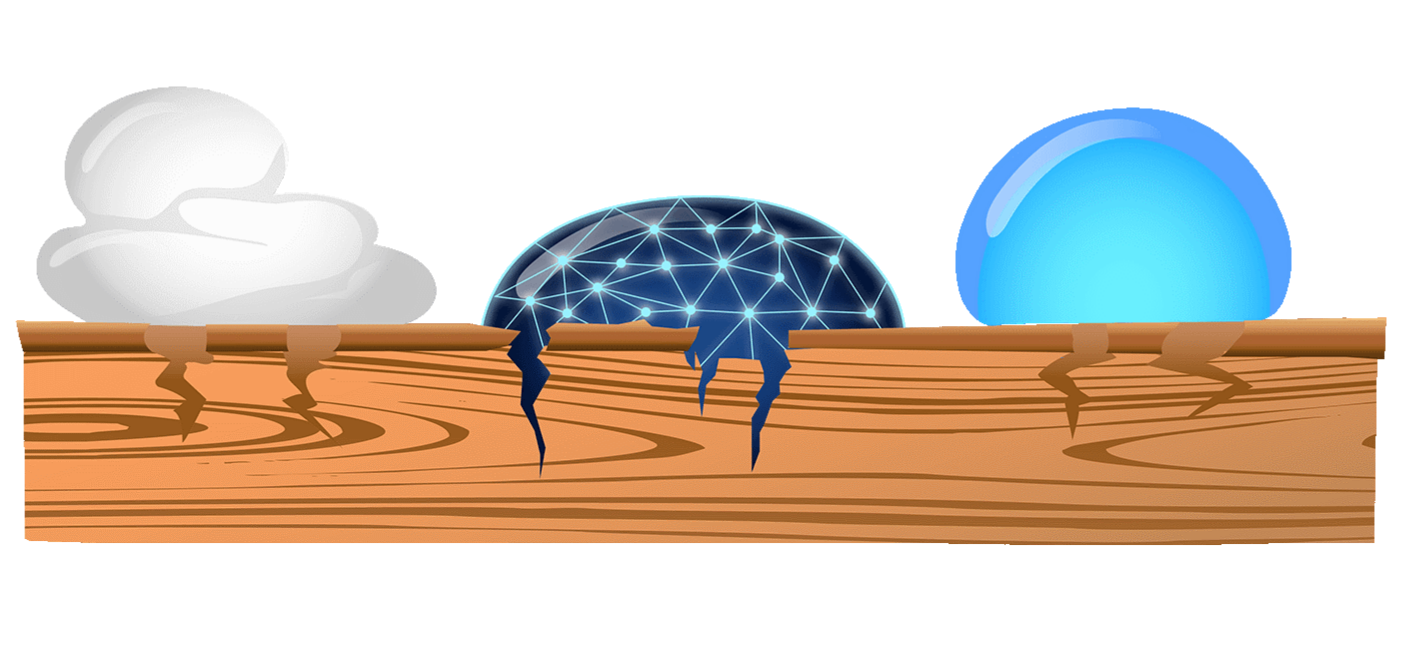

  • Production of wetting agent

The mobile proportioners are also suitable for producing wetting agent. The reduced surface tension allows the wetting agent to deeply soak into the substance on fire.

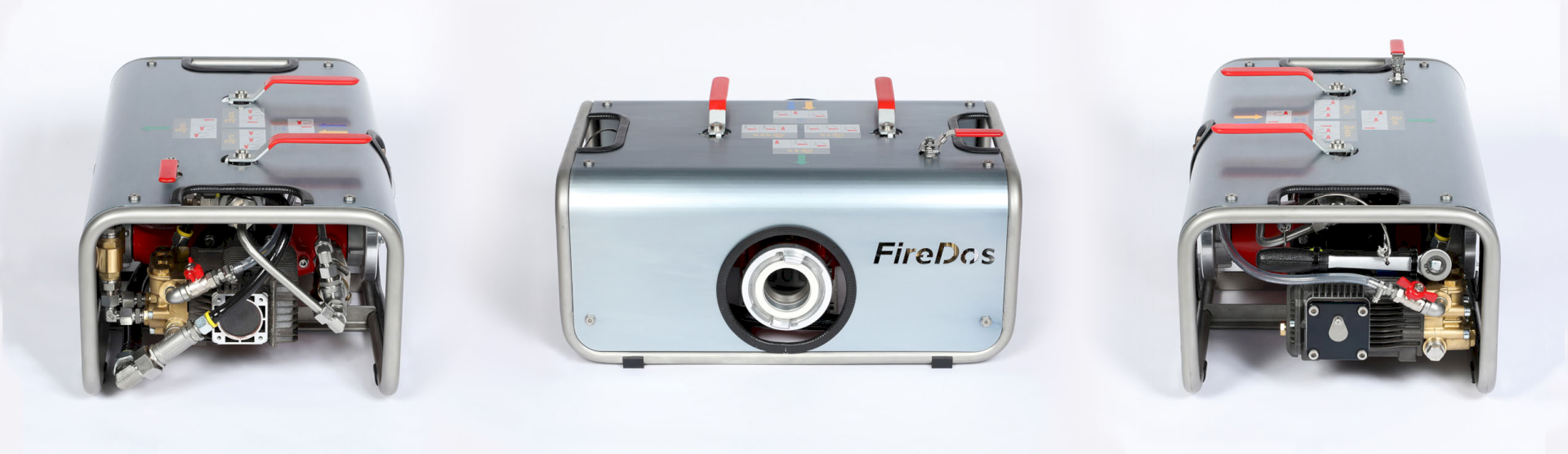

Portable proportioner DZ1000 for wildfire and forest fire suppression

The DZ1000 portable proportioner has been developed, especially for varying firefighting scenarios like wildfire or forest fire suppression. Highly versatile for mobile use, the DZ1000 offers maximum flexibility and guarantees precise foam concentrate proportioning across the entire operating range, from 140 l/min to 1000 l/min. It takes only a few turns to switch between the proportioning rates of 3%, 1% and 0.3% during operation. DZ1000 already enables wetting agent production at a flow rate of 90 l/min.

Mobile proportioners with carrying frame, for high-viscosity foam agents

The mobile proportioners with a carrying frame are suitable for installation on roll-off-containers or carts and are used, e.g., in industrial firefighting. The proportioning rates from 0.2% to 6% can be changed during operation (depending on the type series). Beyond this, the proportioners with a carrying frame are also perfectly suited for the delivery of high-viscosity foam agents.

request a quote

You are interested in our proportioners? We will be happy to help you along. Request a non-binding quotation from us!

Start inquiry

stay informed

stay informed

The FireDos newsletter always keeps you well-informed. Stay up-to-date on all aspects of fire extinguishing technology.

Subscribe now
Brochure

DZ1000 mobile proportioner brochure

Download
(ca. 685 KB)

technical documentation

Document Download
Data sheetDZ1000 for mobile use Download
Data sheetFD500 with support frame Download
Data sheetFD1000 with support frame Download
Data sheetFD2000-3000 with support frame Download
Document Download
Data sheetDeclaration of conformity Download
