The economic solution for your extinguishing system

firedos eco proportioners: PROVEN QUALITY, ECONOMIC PRICE

With the proportioning systems of the FireDos Eco series, you are making the right decision. Rely on proven FireDos quality with best price guarantee. Three different sizes with an extinguishing water volume flow of 300 to 4000 l/min are available on stock, enabling easy and environmental friendly testing of the mixing rate.

  • Proportioning rate: 3%
  • For all Newtonian foam concentrates
  • Easy and environmental friendly test of proportioning rate

Media & Information

your advantages

PROVEN QUALITY
With FireDos ECO, you can rely on the highest FireDos quality.

ECONOMIC PRICE
Our best price guarantee: fewer optional accessories, lower price.

AVAILABLE ON STOCK
Benefit from fast delivery times thanks to sales from stock.

Request a quote

You are interested in our proportioners? We will be happy to help you along. Request a non-binding quotation from us!

Start inquiry

stay informed

stay informed

The FireDos newsletter always keeps you well-informed. Stay up-to-date on all aspects of fire extinguishing technology.

Subscribe now

PURELY MECHANICAL, HIGH RELIABILITY

Like all FireDos proportioning systems, the ECO foam proportioners are purely mechanical and operate entirely without external energy. The proportioning rate of 3% is constantly maintained over the whole operating range. The proportioners are designed to handle an
operating pressure of up to 16 bar as a standard. Their flow direction is from left to right. Different discharge heights or pulsation do not affect them.

Max. foam agent viscosity 1) shear rate 5 1/s 2700 mPa*s
shear rate 50 1/s 460 mPa*s
shear rate 100 1/s 275 mPa*s
shear rate 600 1/s 60 mPa*s

1) Foam agents to be used must be below the specified values at all specified points.

It's all about foam

FireDos ECO proportioning systems are suitable for all Newtonian foam concentrates. They guarantee a constant proportioning rate without the need for calibration. In addition, the proportioning systems enable simple and environmentally friendly testing of the proportioning rate without generating extinguishing foam or premix.

Optional accessories

  • Flanges
  • Flow meter for digital calculation of the proportioning rate

all type sizes at a glance

Type Water flow rate Operating pressure Proportioning rate
FDE 1000/3 300 - 1000 l/min
Up to 12 bar
3%
FDE 2000/3 600 – 2000 l/min
FDE 4000/3 1000 – 4000 l/min
Brochure

BrochUre FireDos Eco

Download
(ca. 461 KB)

TechniCAL DoCumentation

Data sheets (3)
TYPE SIZE Download
Data sheetFDE1000/3 Download
Data sheetFDE2000/3 Download
Data sheetFDE4000/3 Download

tHIS MIGHT ALSO BE OF INTEREST FOR YOU:

FireDos Marketplace: Off-the-shelf delivery

Our proportioners are available on stock. Fast delivery times guaranteed.

View more

FAQS On PROPORTIONING RATE TESTING

Here you find answers on the most frequently asked questions.

View more

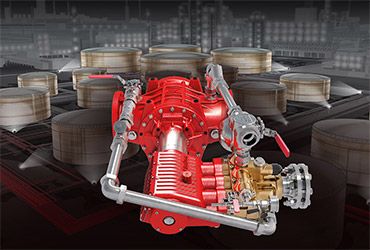

Stationary Foam Proportioners
