Optimized flow pattern, maximum reach.

Monitors for firefighting with water or foam

FireDos monitors are fit for firefighting with water or foam and deliver thousands of liters of water per minute, reaching 150 meters and more. The innovative, flow-optimized 'Oval Flat Design' ensures minimum pressure loss, enabling maximum throw & reach for the monitors.

  • For flow rates from 500 l/min to 60 000 l/min
  • Manually or electrically controlled
  • Adjustment of the extinguishing agent flow rate during operation and full pressure

your advantages

a safe investment

Robust, reliable, sturdy, designed-to-last

easy operation and integration

Electrically operated, integration into thermal imaging systems

Flexible in use

Wide swivelling ranges, adjustable extinguishing agent flow rate

Play
Monitor nozzles

The monitor nozzle shapes the jet

The monitor's nozzle is of special importance when using monitors for firefighting as it is the nozzle that
shapes the jet. No matter if water or foam, manual or electrical controls – we have the perfect nozzle for your monitor application.

JN full jet nozzle

  • For maximum reach
  • Discharge of water

MPN / AMPN MULTI-PURPOSE NOZZLEs

  • Discharge of water or low-expansion foam premix
  • Adjustable extinguishing agent flow rate
  • Stepless adjustment between hollow jet and spray jet
  • Circle-shaped spray jet, optional nozzle design for shaping a flat and wide spray jet

RFP Foam Pipe

  • Addition to the multi-purpose nozzles
  • Temporary discharge of low-expansion foam
  • Discharge of pure water is possible

FPD / AFPD FOAM PIPE WITH DEFLECTOR

  • Discharge of low-expansion foam
  • Wide jet to produce a foam blanket
  • With the deflector in place, a wide jet can be produced for large-surface foam application
  • Discharge of pure water is possible
  • Wide swiveling ranges

Depending on the equipment version, the following maximum swiveling ranges are available:

  • Horizontal (left/right): 360° (350° at DC drives)
  • Vertical (up/down): +/-90°, depending on the selected version
  • Sturdy and long-lasting

The media-exposed components are designed for working pressures up to 16 bar, with lubricated-for-life bearings. Reduced friction resistance seals guarantee ease of movement even after long down-times.

  • Adjustable flow rate

All type series are available with nozzles and foam pipes allowing flow rate adjustment even during operation and at full pressure

configure your monitor

Please select a monitor and its nozzle type in the animation below. After you have set your operating conditions, you will see the range and height of the extinguishing agent flow as well as the resulting recoil force. You are also welcome to output the result as a PDF.

request a quote

You are interested in our monitors? We will be happy to help you along. Request a non-binding quotation from us!

Start inquiry

stay informed

stay informed

The FireDos newsletter always keeps you well-informed. Stay up-to-date on all aspects of fire extinguishing technology.

Subscribe now

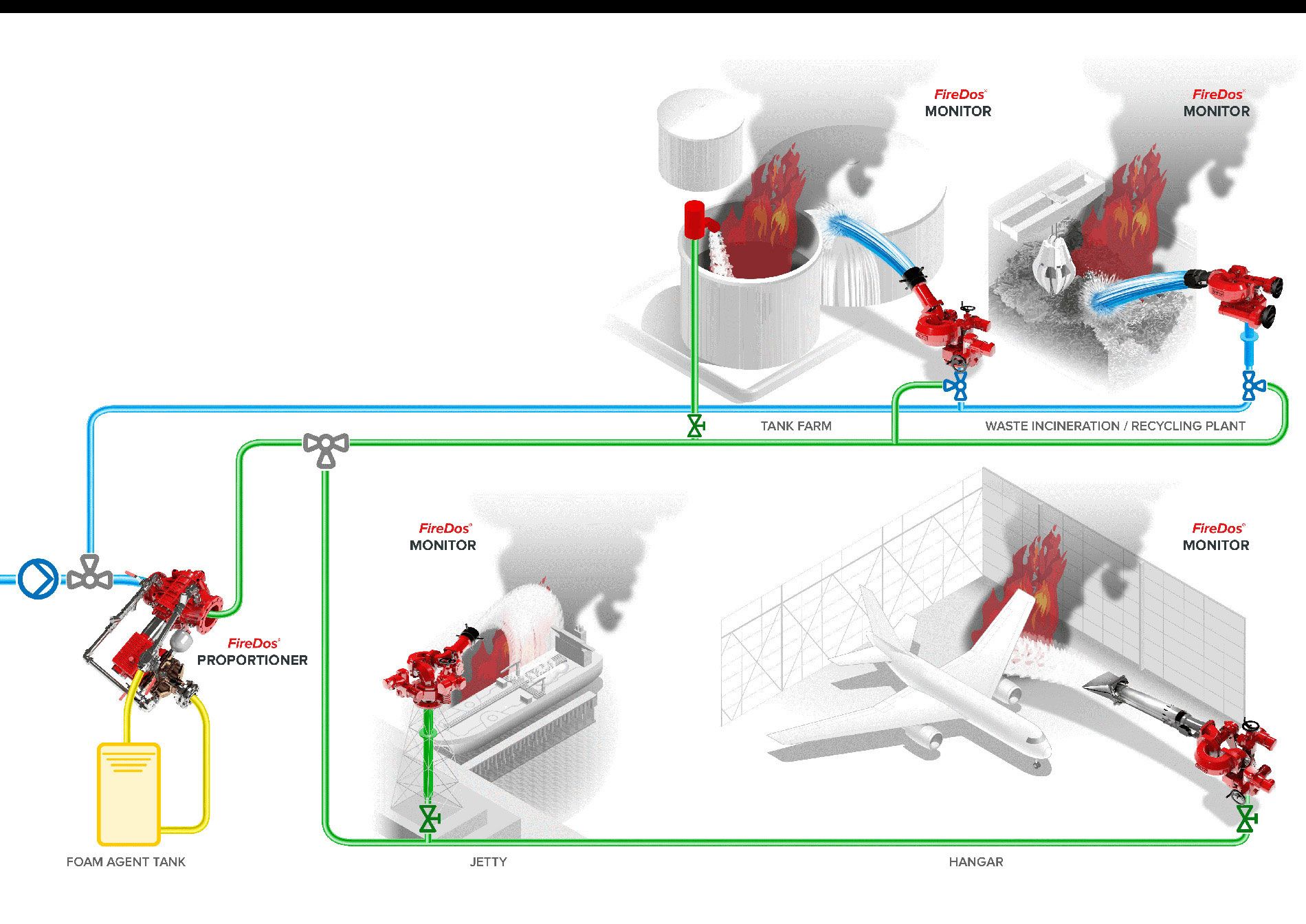

Typical monitor applications

FireDos monitors are used wherever extinguishing agents for fire class A and B are applied, outdoors and indoors. Typical fields of application include tank farms, waste incineration plants, jetties and aircraft hangars.

monitor and nozzle selection

Type series
M1 M2 M3 M4 M5 M7 M9 M12
Max. extinguishing agent flow rate in l/min 2000 2500 4000 8000 12000 24000 40000 60000
Multi-purpose nozzle (MPN) x x* x* x* x* x
Multi-purpose nozzle with adjustable
extinguishing agent flow rate (AMPN)
  x x x x x x x
Removable foam pipe (RFP) x x x x x x x x
Foam pipe with deflector (FPD)   x x x x x
Foam pipe with deflector and adjustable
extinguishing agent flow rate (AFPD)
  x x x x x
Full jet nozzle (JN)    x x x x x x x
* Valid for selected product and drive types. See separate datasheet and FM Approval Guide entry.

Start testing our monitors – in the virtual world of FireDos!

Explore the virtual world of FireDos and test our monitors in simulated application settings. Augmented Reality puts our monitors into your hands – just a click away.

Please note the following for easier navigation:

  • Use the number buttons to show the individual camera positions.
  • Use the buttons 'q' and 'e' to navigate up and down.

We look forward to meeting you in our virtual world!

Enter virtual FireDos world

integration into automated fire extinguishing systems

For remote-controlled operation in stationary extinguishing systems, our monitors can be equipped with functional controls. Integration into existing thermal imaging systems is possible. Users benefit from minimum reaction times and maximum reliability.

  • For all types of electrical drives
    We offer control systems for all types of electrical drives: Direct, alternating or three-phase current, regardless of voltage or frequency.

  • Numerous control functions
    Remote control of all monitor functions is possible – from traveling to park or working position, oscillating movement and automatic self-testing.
  • Portable and stationary operating panels
    Controlled using mobile or permanently installed operating panels. Portable remote controls can also be implemented.
  • Individual integration into existing systems
    FireDos monitors process signals from early fire detection systems by various manufacturers. In addition, they support the signal exchange with superior control systems and fire alarm panels. Integration into CCTV monitoring solutions is also possible.
Brochure

monitor brochure

Download
(ca. 4.24 MB)

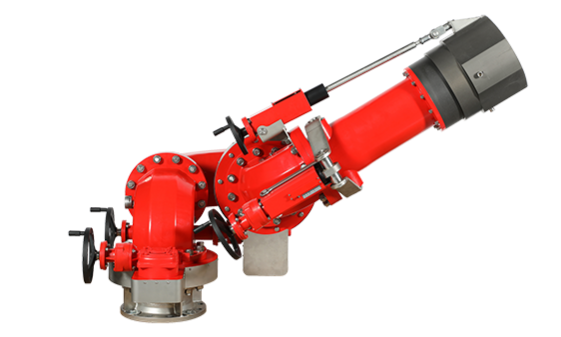

image gallery

technical documentation

Type size Download

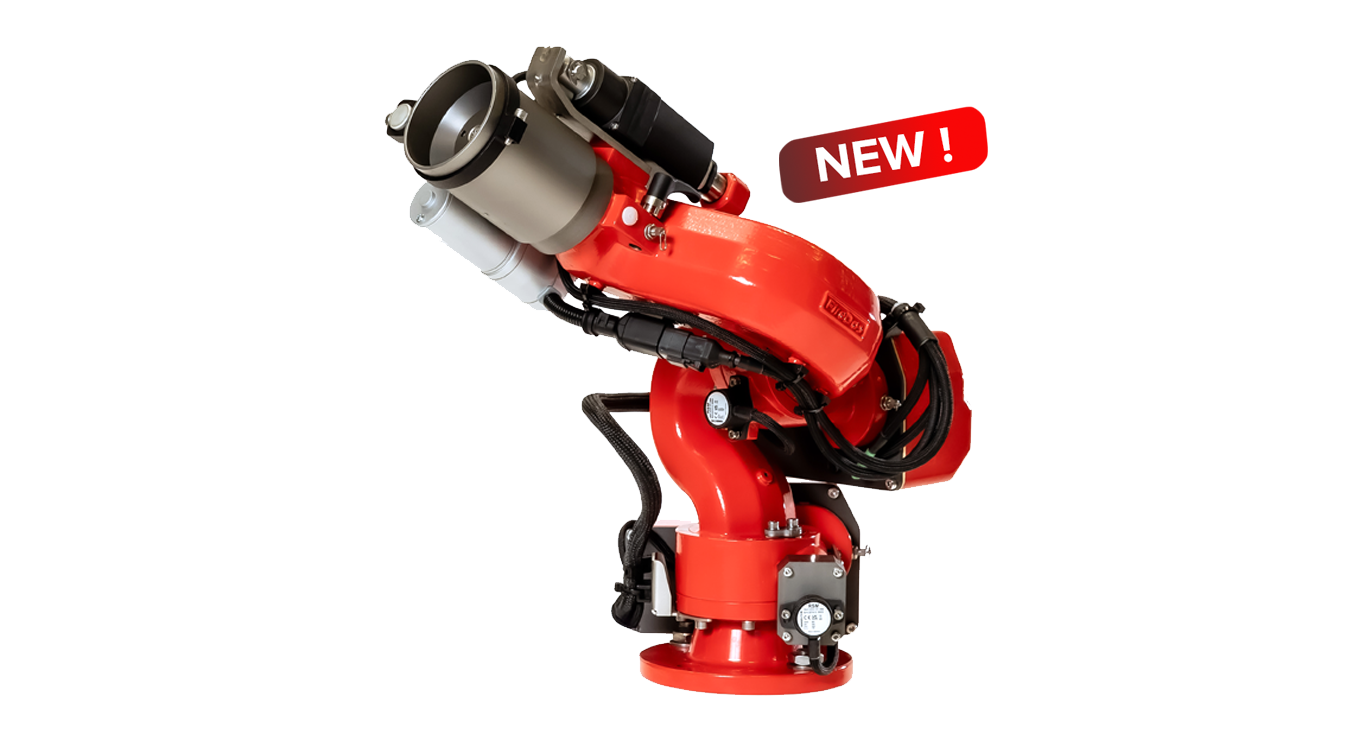

Data sheetM1 Download
Data sheetM2-M7 FP-FPD AC Download
Data sheetM2-M7 FP-FPD AC 3-Phase Download
Data sheetM2-M7 FP-FPD DC Download
Data sheetM2-M7 FP-FPD L+MO Download
Data sheetM2-M7 MPN AC Download
Data sheetM2-M7 MPN AC 3-Phase Download
Data sheetM2-M7 MPN DC Download
Data sheetM2-M7 MPN L+MO Download
Data sheetM2-M9 AMPN AC Download
Data sheetM2-M9 AMPN AC 3-Phase Download
Data sheetM2-M9 AMPN DC Download
Data sheetM2-M9 AMPN L+MO Download
Document Download
Data sheetDeclaration of conformity Download
Data sheetDeclaration of conformity ATEX Download
Document Download
Data sheetFM certificate Download

this might also be of interest for you:

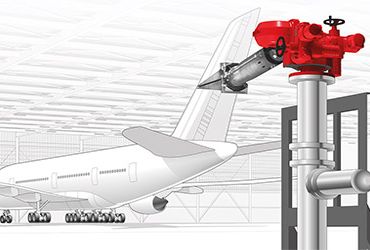

Remote controlled monitors for stationary systems
