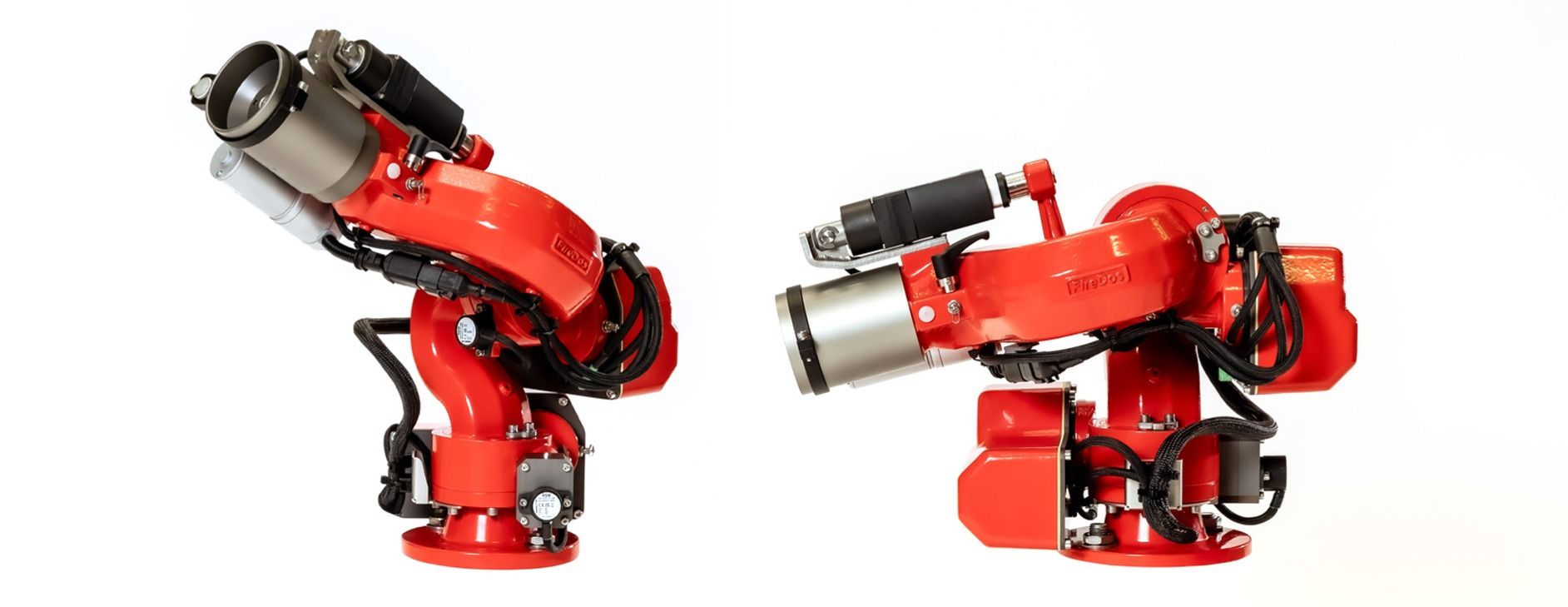

M1 monitor for stationary fire protection and Fire trucks

The new M1 monitor meets the latest market requirements and was developed specifically for the needs of stationary fire protection and fire departments. With its compact dimensions, it is one of the smallest fire monitors with electric drives and is perfect for use in confined spaces. Despite its compact design, the M1 fire monitor is available with two different working ranges.

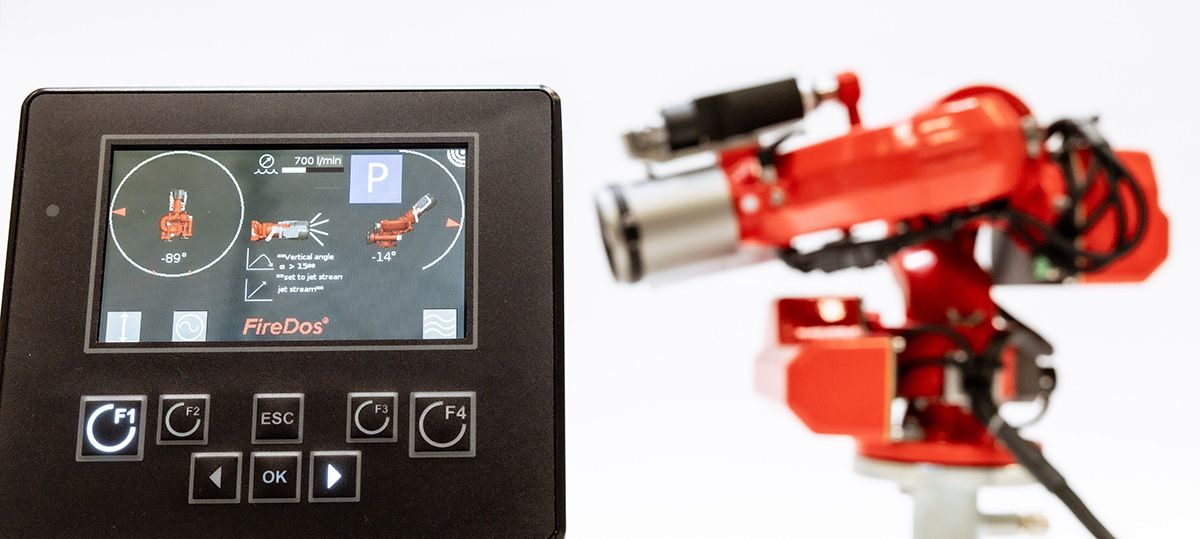

The M1 is one of the smallest fire monitors worldwide with electric drives. Equipped with 24V DC drives, it can also be operated remotely using the FireDos control system.

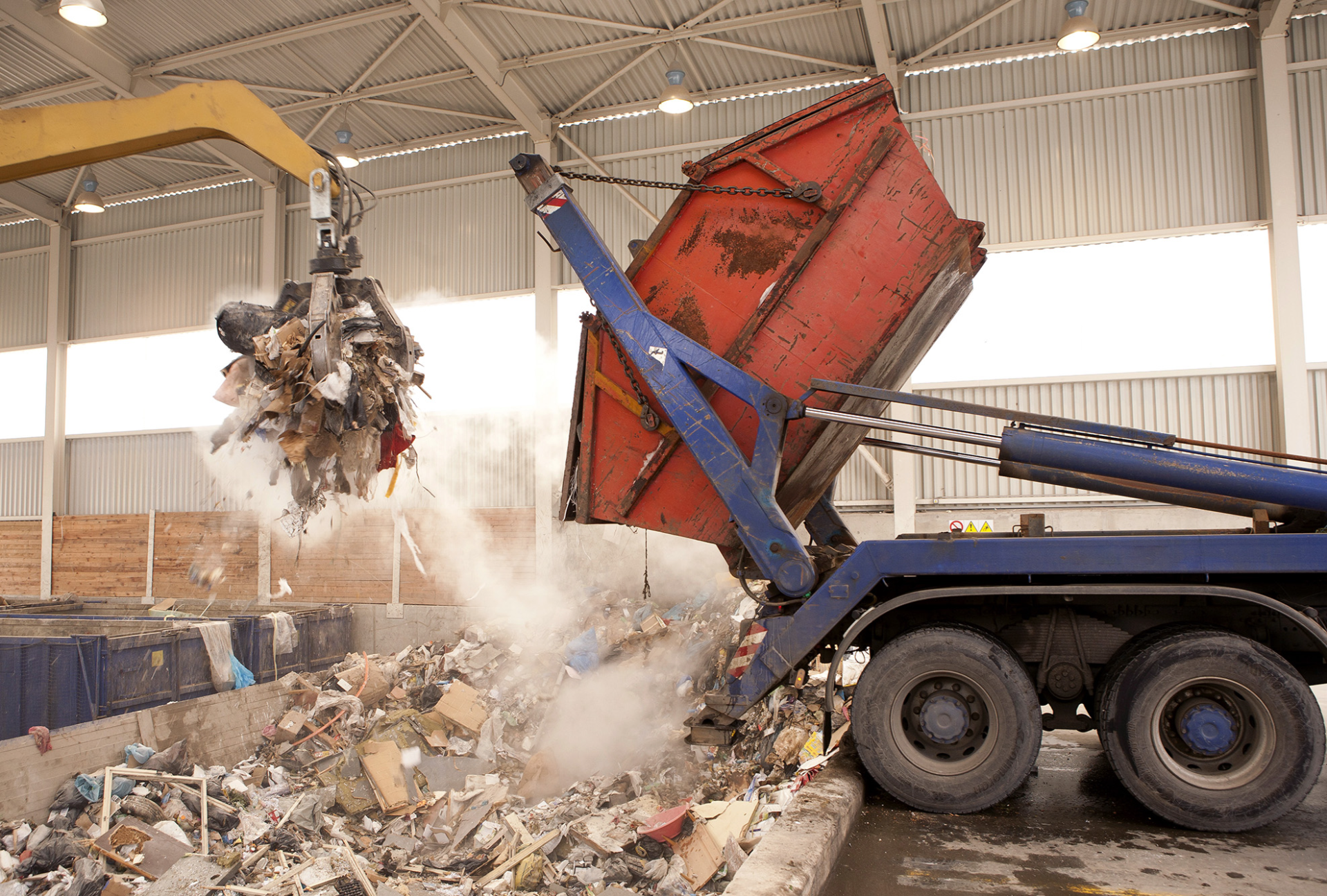

A typical application is stationary fire protection in waste bunkers, recycling plants, car stores, or on helicopter landing pads. In addition, the M1 fire monitor can be used as a front monitor on all common fire trucks, for example, to successfully fight vegetation fires.

• For extinguishing agent flows up to 518 gpm
• Compact and lightweight: 470 mm x 255 mm x 360 mm, approx. 12 kg
• For stationary fire protection and for installation on fire trucks
• Highly configurable in terms of nozzles and extinguishing agent flow
• For rapid extinguishing of large areas with the optional flat jet nozzle
• On request with 24V CAN-BUS control for connection to fire trucks or with control for stationary fire protection

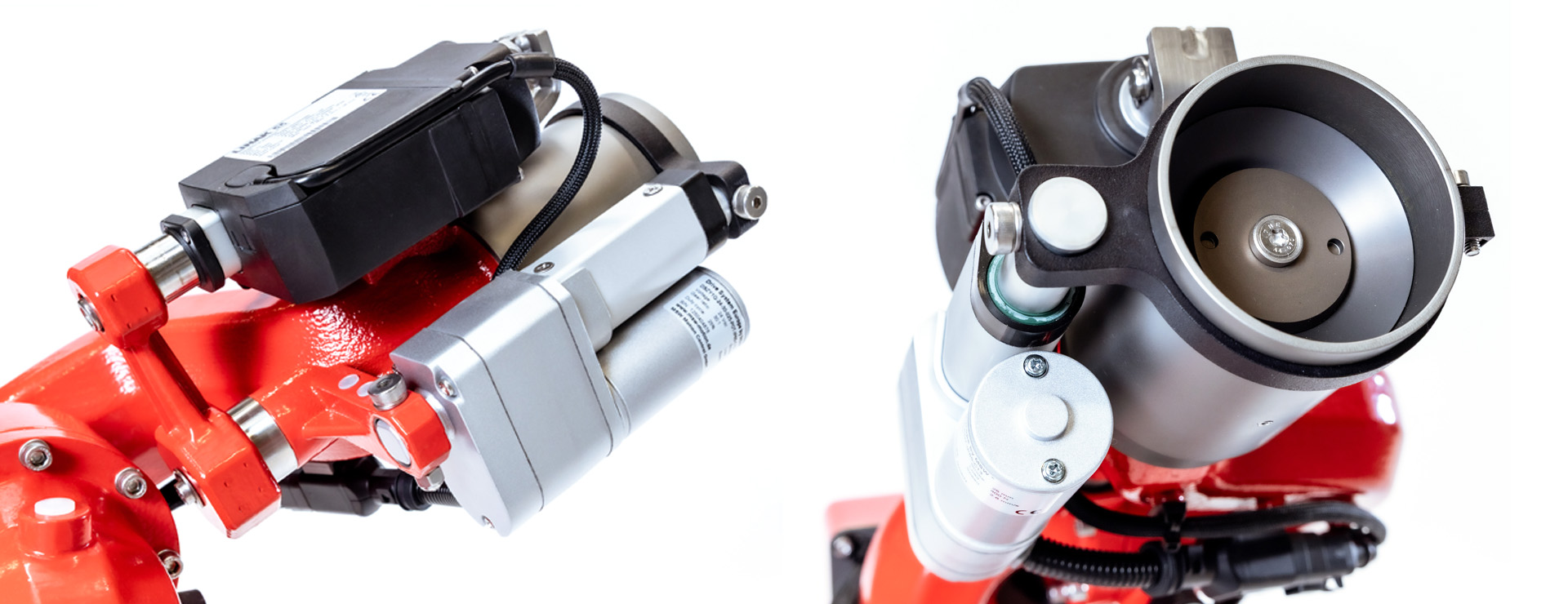

The M1 monitor can be equipped with either the MPN or AMPN multi-purpose nozzle. If the MPN multi-purpose nozzle is selected, the extinguishing agent flow is adjusted and tested by our experts in accordance with customer specifications. The AMPN nozzle (Adjustable Multi-Purpose Nozzle) allows the extinguishing agent flow to be continuously adjusted between 50 and 264 gpm or 106 and 528 gpm at the touch of a button. Optionally, both nozzles of the monitor can also be designed as flat jet nozzles, which produce a fan-shaped extinguishing jet.

MPN-/AMPN MULTI-PURPOSE NOZZLE FOR MAXIMUM FLEXIBILITY

• Delivery of water or low-foaming foam
• Stepless switching between hollow jet and cone-shaped spray jet
• Optional design for wide-angle flat jet instead of spray jet
• The AMPN multi-purpose nozzle also allows the amount of extinguishing agent to be changed during operation.

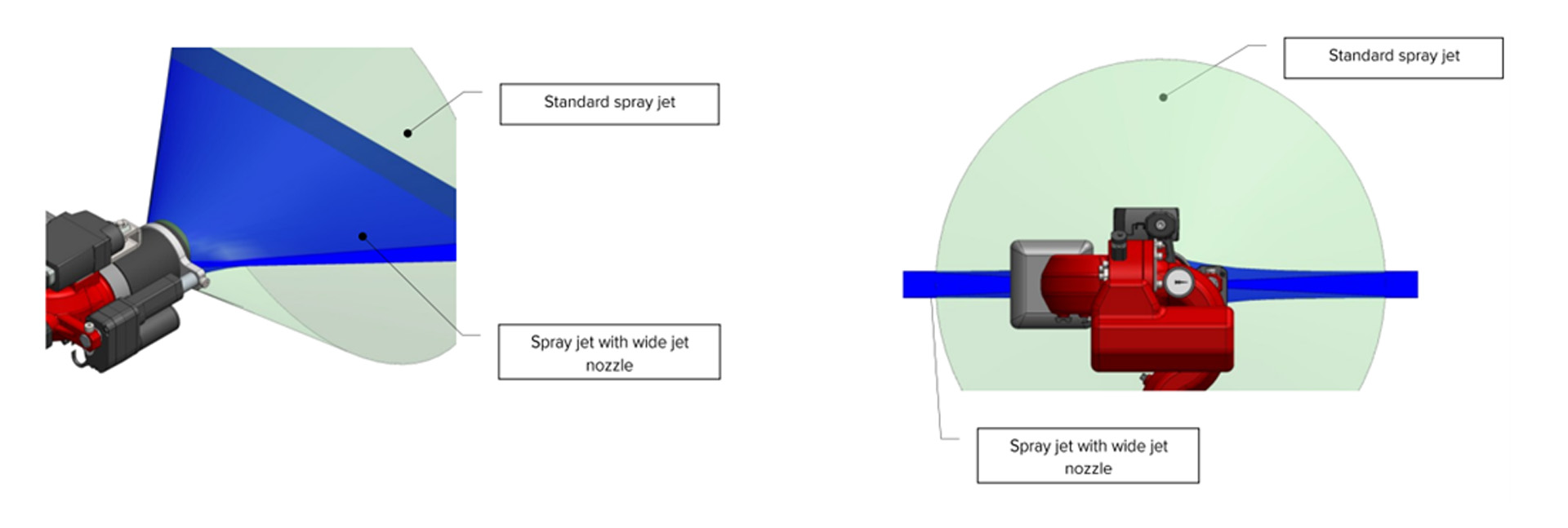

oPTIONAL FLAT JET NOZZLE: EFFECTIVE EXTINGUISHING OF LARGER AREAS

• The flat jet version produces a wide fan-shaped extinguishing jet.
• This allows larger areas, e.g., in forest and vegetation fires, to be extinguished more quickly and effectively.
